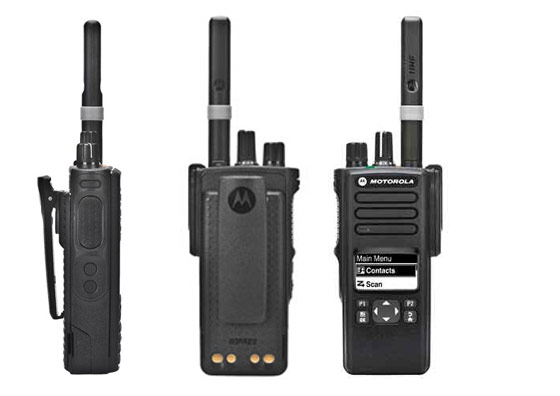

Motorola Products > MOTOTRBO Terminals & Infrastructure > DP4600e / DP4601e Portable Radio





With this dynamic evolution of MOTOTRBOTM digital two-way radios, you’re better connected, safer and more productive. The DP4000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.

Here's what's new in these next-generation radios:

  • Integrated accelerometer for optional Man Down (DP4401e, DP4601e, DP4801e)
  • Bluetooth® 4.0
  • Indoor location tracking
  • Integrated Wi-Fi®
  • Over-the-air software updates
  • Enhanced audio quality
  • Improved expandability
  • Better battery life (up to 28 hours)
  • Better range (up to 8%)
  • Better waterproofing (IP68)

Compatibility: Capacity MAX, IP Site Connect, Capacity Plus, Linked Capacity Plus and Connect Plus.

Connected The MOTOTRBO DP4000e Series is a family of ETSI DMR Standards compliant digital radios that delivers operation-critical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi® enables remote software upgrades and indoor and outdoor location- tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows. Productive Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a powerful audio amplifier, these radios deliver loud, clear speech, with industrial noise cancellation for better intelligibility. The latest energy technology delivers up to 28 hours of battery life for 3-shift working, and an improved receiver boosts range by up to 8%.

Safe Safeguard your staff with responsive push-to-talk technology.The prominent orange emergency button on DP4000e Series radios summons help with one touch, using Transmit Interrupt to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen and can automatically call for assistance (DP4401e, DP4601e, DP4801e). The radio is tested to tough military standards and is waterproof to IP68. It won’t let you down.

Performance Characteristics

  • Frequency band

    UHF, VHF, 300MHz

  • Power output

    UHF, 300Mhz: 1W/4W
    VHF: 1W/5W

  • Battery life (based on a 05 05 90 duty cycle)

    Up to 29 hrs (digital) / 22 hrs (analogue)

  • Repeater capable

    Yes

Physical Characteristics

  • Dimensions H x W x D (with standard battery)

    DP4800e/DP4801e: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
    DP4600e/DP4601e: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
    DP4400e/DP4401e: 130 x 55 x 34 mm (5.1 x 2.2 x 1.4 in)

  • Weight (With 1400mAh LiIon battery)

    DP4800e/DP4801e: 315 g (11 oz)
    DP4600e/DP4601e: 315 g (11 oz)
    DP4400e/DP4401e: 290 g (10 oz)

Radio Features

  • Number of channels

    DP4801e/DP4800e: 1000 channels
    DP4601e/DP4600e: 1000 channels
    DP4401e/DP4400e: 32 channels

  • Channel spacing

    12.5, 20, 25

Technology

  • Digital technology

    Yes

  • System type

    Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Trunking

User Environment

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • TIA4950, Factory Mutual (FM) options

    Yes

Warranty

  • Standard warranty

    2 years
