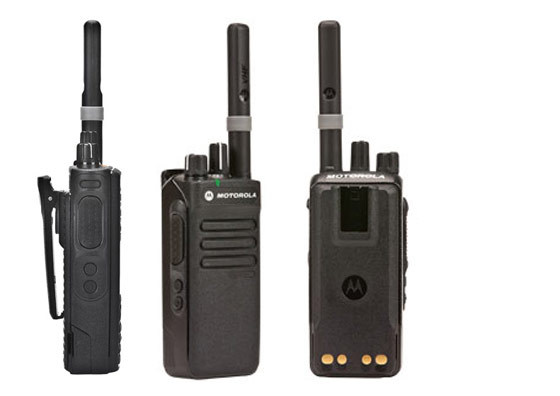

Motorola Products > MOTOTRBO Terminals & Infrastructure > DP2400e Portable Radio





SERIES DEP™500e SERIES DEP™500e With this dynamic evolution of MOTOTRBO™ digital two-way radios, you’re better connected, safer and more efficient. The DP2000e Series is designed for the everyday worker who needs effective communications. With systems support and loud, clear audio, these next-generation radios deliver cost-effective connectivity to your organisation.

Here's what's new in these next-generation radios:

  • Over-the-air programming
  • Enhanced audio quality
  • Improved expandability
  • Better battery life (up to 28 hours)
  • Better range (up to 8%)
  • Better waterproofing (IP67)
  • TIA4950 certified HazLoc models available

Connected The DP2000e Series is a family of ETSI DMR Standards compliant digital radios that delivers operation-critical voice communications. With a single button push, workers can communicate for greater efficiency and enhanced safety. With support for trunking, as well as legacy analogue technology, you can keep your organisation connected as it grows. Efficient With new noise cancellation technology and improved clarity, the DP2000e Series delivers excellent audio quality to make your workplace communications clearly intelligible. The latest energy technology delivers up to 28 hours of battery life for 3-shift working, and the optional IMPRES Over-the-Air Battery Management tool helps you maximize battery lifetime. An improved receiver boosts range by up to 8%, allowing you to reach further than ever.



Safe The DP2000e Series is designed to enhance safety in your organisation, with the rapid response capability of instantaneous push-to-talk comunications. Even if a worker is unresponsive, you can remotely activate the radio to check status, ensuring your worker is safe. Privacy options are available to prevent others listening in on your communications, and radios can be remotely disabled if they are misplaced or stolen. New TIA4950 certified models are available for use in hazardous locations where flammable or explosive materials are present.



Performance Characteristics

  • Frequency band

    UHF, VHF, 300MHz

  • Power output

    UHF, 300Mhz: 1W/4W
    VHF: 1W/5W

  • Battery life (based on a 05 05 90 duty cycle)

    Up to 28.5 hrs (digital) / 21 hrs (analogue)

  • Repeater capable

    Yes

Physical Characteristics

  • Dimensions H x W x D (with standard battery)

    122 x 56 x 36 mm (4.8 x 2.2 x 1.4 in)

  • Weight (With 1400mAh LiIon battery)

    DP2600e: 281 g (10 oz)
    DP2400e: 264 g (9.3 oz)

Radio Features

  • Number of channels

    DP2600e: 128 channels
    DP2400e: 16 channels

  • Channel spacing

    12.5, 20, 25

Technology

  • Digital technology

    Yes

  • System type

    Conventional, IP Site Connect, Capacity Plus

User Environment

  • Mil spec

    810 D, 810 E, 810 F, 810 G

  • IP Standards

    IP67

Warranty

  • Standard warranty

    2 years
