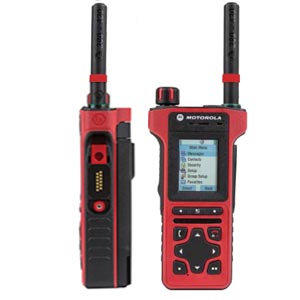

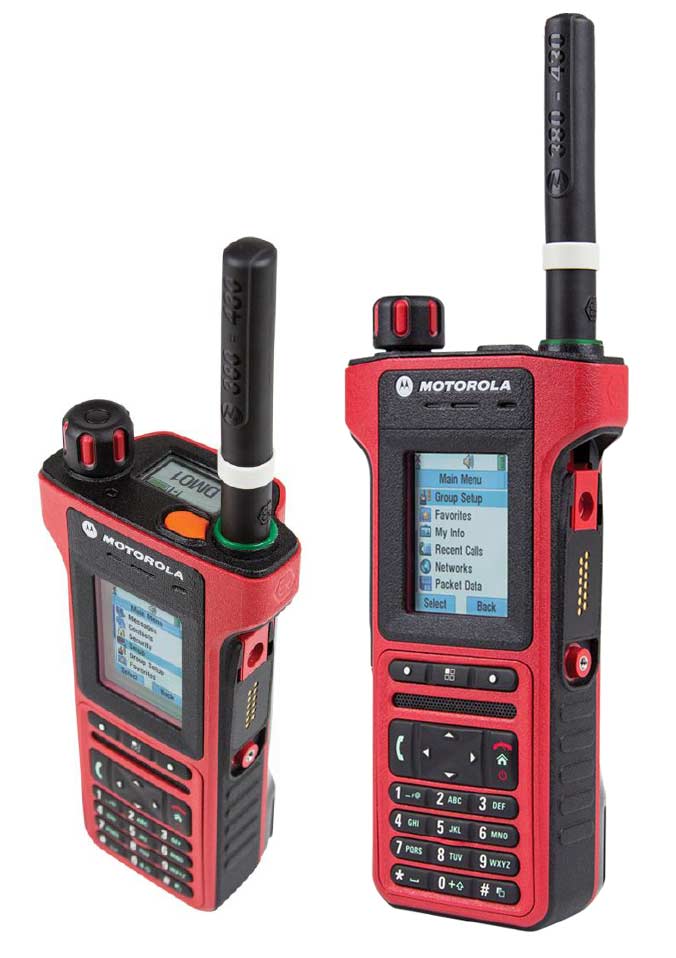

The MTP8550Ex Series radios set a new standard in TETRA ATEX portables. From their form to their function, these new radios have been carefully engineered to address workers’ needs and offer the ultimate in safe, reliable and efficient communications in hazardous environments.
Meeting the latest V6 ATEX and IECEx standard, this next generation of TETRA radios represents a significant step forward in mission critical communications designed for end-users who work in areas with potentially explosive gases or chemical vapours, flammable liquids or combustible dust.
The MTP8550Ex Series TETRA ATEX radios deliver powerful audio, enhanced coverage, extended battery life, greater ruggedness, advanced ergonomics and increased usability, so personnel working in the most extreme environments have the ability to work safer, work smarter and work anywhere.
LOUD AND CLEAR AUDIO
The MTP8000Ex Series is optimised for excellent audio performance in all types of noisy environments. Audio through both the speaker and accessories is clearer, even at full volume, and the user can be heard clearly against the loudest background noise.
High receiver sensitivity and high transmit power gives the MTP8000Ex Series greater coverage and enhanced in-building performance. For ultimate safety, the radio is fitted with an LED coverage indicator at the base of the antenna, alerting the user when coverage is poor.
The MTP8000Ex Series radios are built to work in the toughest and most hazardous environments, in both the cold and wet or the dust and heat, with IP65, IP66 and IP67 ratings.
Secure Bluetooth wireless technology is integrated in to the MTP8000Ex Series, ensuring that a range of wireless accessories and collaborative devices can be securely and reliably paired with the radios.

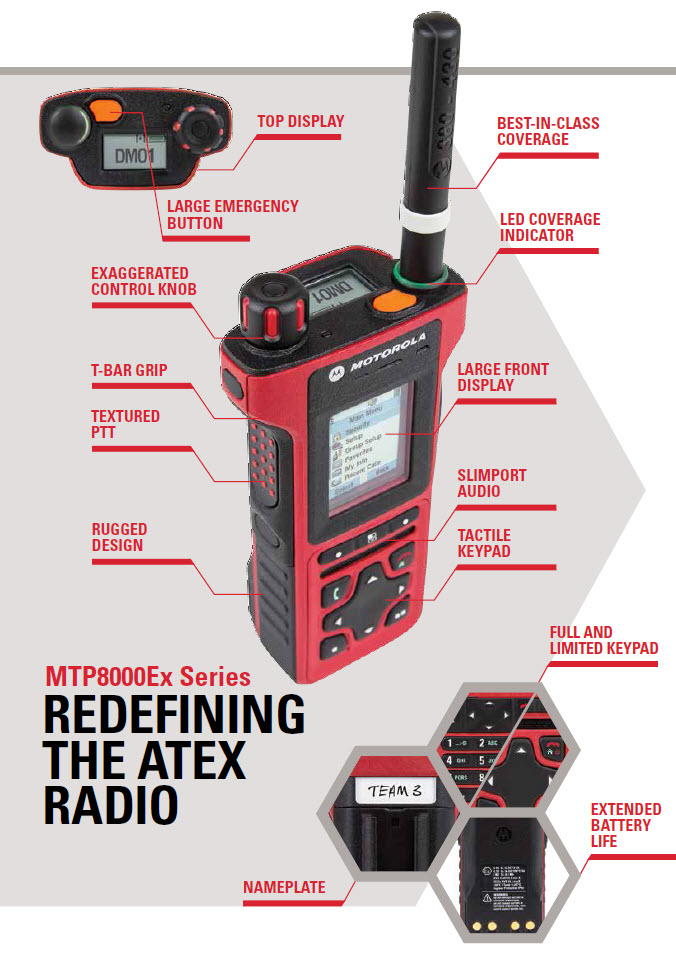

The MTP8000Ex Series has been engineered to redefine usability, from the T-Bar profile to the exaggerated control knob, tactile keypad, enlarged emergency button and textured PTT button.
EXTENDED BATTERY LIFE
With an extended battery life in excess of 16 hours, workers can be confident that the MTP8000Ex Series radios will be ready for a longer shift in the event of emergencies or unplanned situations.
EASIER TO USE
With intuitive user interface, innovative nameplate, large main display and the secondary top display making it easier to see emergency notifications, talk group status or battery condition, the MTP8000Ex Series is designed to be easier to use.
Battery life - standard (based on a 5 35 60 duty cycle)
Battery life - standard (based on a 05 05 90 duty cycle)
RF power control
Power class 3L & class 4
Bluetooth 2.1 +EDR, Bluetooth 4.0, Bluetooth Smart (BTLE)
GPS, Beidou, Glonass
Multi slot packet data
Single and multi slot packet data service
A and B
Receiver dynamic sensitivity
-107 dBm (minimum); -109 dBm (typical)
Receiver static sensitivity
-116 dBm (minimum), -118 dBm (typical)
ATEX dust specifications
IP64, IP65, IP66 & IP67 per
IEC-60079-0:2011 & IEC-60529
Dust, water, rain, waterjet proof & submersible

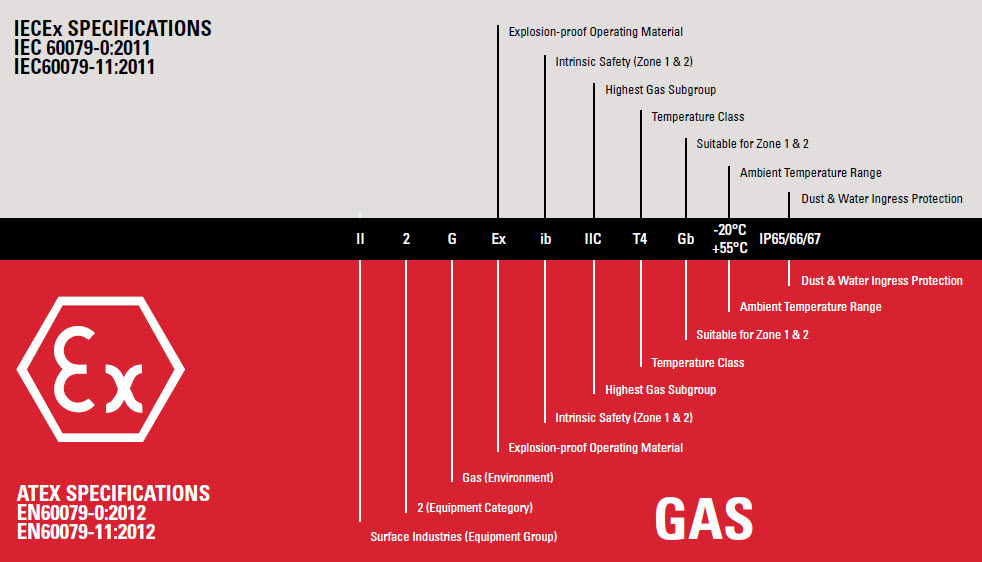

ATEX gas specifications
ETS 300-019-1-7 Class 7.3E
IP64, IP65, IP67
810 D, 810 E, 810 F, 810 G
-30 to +55 C
Shock, drop and vibration
ETS 300-019 1-7 class 5M3
-40 to +85 C
TMO Folders - up to 1,500, each capable of holding up to 2,048 TMO Talkgroups
Full duplex TMO private, PABX, PSTN, emergency
Half duplex TMO private, group, emergency
Dialling direct, scroll, speed, one touch button/key
AlphaNumeric search, call history redial
Half duplex DMO private, group, emergency
Up to 1000 contacts with 6 numbers per contact (max 2000 unique numbers)
40 lists of up to 20 talkgroups
TMO Talkgroups up to 10,000
DMO Talkgroups up to 2,000
Emergency Voice Services
Emergency target address
Individual or group
HOT MIC emergency - hands free in moments that matter
Send on emergency
Smart TMO / DMO selection for emergency call set up
WAP browser / WAP push
SDS messaging in TMO and DMO, incl concatenated messaging
Air interface encryption algorithms
TEA1, TEA2, TEA3
Air interface encryption security classes
Security class 1, 2, 3 and 3G support
End to End Encryption
Motorola CRYPTR micro hardware module, FIPS 140-2 level 3 validated
Secure provisioning tool (Key Variable Loader)
Over the Air Re-keying (OTAR)
Temporary enable disable (Stun), Permanent enable disable (Kill)
< 5 metre (50% probable) @ -130 dBm
Integrated external antenna
ETSI LIP, Motorola LRRP
