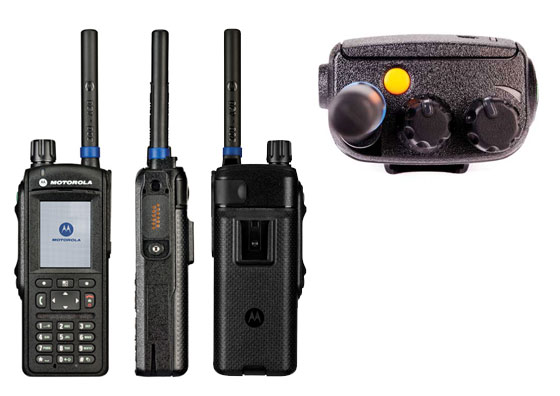

Motorola Products > TETRA Terminals & Infrastructure > MTP6750 TETRA Portable Two-Way Radio



When every second counts, the MTP6750 delivers by providing a trusted communications lifeline, ensured by industry leading audio and coverage performance. But keeping you safe is about more than these fundamentals - with the MTP6750, you can be prepared for what’s ahead through mission-critical intelligence, delivered directly to the radio – the world’s first TEDS Ready portable device. Thanks to the integrated image capture system, you can securely capture vital photographic evidence – another world first for a TETRA device.

Communications Lifeline

With best-in-class receiver sensitivity, operational range can be extended by up to 14%. With 2W audio through the loudspeaker as well as through the IMPRES remote speaker microphone, you can benefit from loud, clear and undistorted audio to ensure reliable communication.


Mission-critical Design

Frontline personnel need to trust their equipment. To ensure ruggedness our radios meet and exceed stringent MIL-SPEC test standards in addition to meeting the requirements of ETSI mechanical tests. In addition to optimized ergonomics, the MTP6000 series is IP67 compliant meaning it will continue to operate even after being submerged in water.


Capture the Evidence

Empowering frontline officers to capture evidence can be operationally vital. With the integrated 5MP camera and Digital Fingerprint authentication technology, frontline operatives can secure mission-critical photographic evidence and intelligence.


Harness Intelligence

Instantly share intelligence with frontline officers through TEDS data connectivity, flexible Bluetooth v2.1 wireless technology or using the micro SD card for multimedia content storage.

Automate the Backoffice

Simply dock the radio in its charging cradle to seamlessly share evidential images and mission briefings between the radio and backoffice systems.


Group call
Late entry
Compatibility with
Gateway and repeater


Data storage
micro SD card (max. 32 GB)
Status messaging
400 alias messages
Short data service (SDS)
20 message inbox, individual or group addresses, send/receive during calls
Packet data (PD)
7.2kbps - 28.8 kbps gross (single or mutli-slot)
TEDS-ready hardware – TEDS supports up to 80kbps in 50kHz channel
Integrated WAP browser
AT commands


Emergency Voice Services



Smart emergency
Hot mic
Configurable timers
Send on emergency
Emergency target address
Individual or group
Emergency status


GPS antenna
Integrated in TETRA antenna
Mode of operation
Autonomous or assisted (A-GPS)
Location protocols


Integrated Imaging Features



Image management
Works with iTM PICS for auto-upload and download of images
Time, Date, Radio ID, Cell ID, Talkgroup ID, GPS
Image storage
Up to 32GB micro SD
Image authentication
Digital fingerprint by Motorola
Built-in LED flash
5MP with Auto Focus


Performance Characteristics


Frequency bands
350-470 MHz
Power output
Class 3L (1.8W) & Class 4 (1W)


Physical Characteristics


Dimensions H x W x D (with standard battery)
132 x 59 x 34 mm (with standard battery)


Receiver static sensitivity
-114 dBm minimum, -116 dBm typical
Receiver dynamic sensitivity
-105 dBm minimum, -107 dBm typical
Scan types
Talk group
Receiver class
RF power level accuracy
+/- 2 dB


Security Features


End to End Encryption
Enhanced End to End Encryption with OTAKsupported through AES128
Air interface encryption algorithms
Air interface encryption security classes
Class1 (clear), Class2 (SCK), Class3 (DCK, CCK & GCK)
Key provisioning
"Secure provisioning tool (key variable loader KVL)Over the Air Re-keying (OTAR) for SCK and Class 3 (CCK & GCK)"
Network access
Temporary enable / disable (Stun), Permanent enable / disable (Kill)
Infrastructure initiated and made mutual by terminal


TMO Services


Full duplex
Up to 2047 groups


User Environment


IP Standards
IP67 and IP65 per IEC60529
Operating temperature
-30oC to +60oC
Storage temperature
-40°C to +85°C
ETSI 300 019-1-7 class 7.3E
Shock, drop and vibration
ETSI 300-019 1-7 class 5M3
