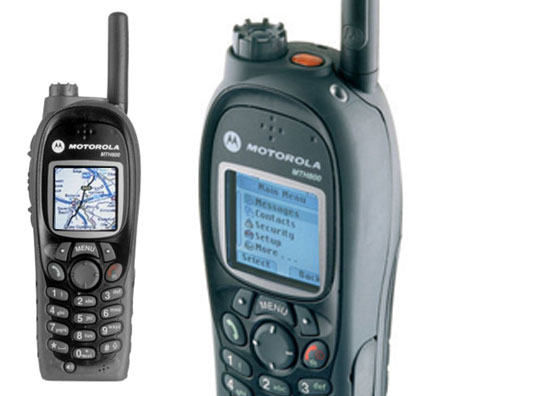

MTH800 TETRA GPS Portable Terminal For Public Sector And Military Communications

The MTH800 boasts the very latest technological advances – developed in response to a myriad of real-world requirements.

From public sector users such as the emergency services and military, to commercial enterprises in industries as diverse as utilities, retailing, construction, logistics and transport – the need for greater security has never been more important. From the end-to-end encryption to the integrated GPS location system, the MTH800 offers an unrivalled set of tools for personal safety and security. Available only in the 450-470MHz frequency band.

GPS Location Service
Enhance user safety and efficiency with the MTH800. Incorporating the latest semiconductor technology, it includes a highly sensitive, low power consumption GPS receiver. The MTH800 uses a new patented antenna combining TETRA and GPS signal to help ensure optimal positioning of the antenna for GPS coverage. The solution includes a full terminal resident software application providing control of all GPS parameters over the air – no need to touch programmed terminals when changes are required.


The MTH800 comes packed with power, a new processor and Digital Signalling Processor (DSP) to ensure applications such as WAP, Multi Slot Packet Data (MSPD), imaging etc will run smoothly and take advantage of the 16MB byte flash memory.


While MTH800 includes many exciting new features it is important to not forget the basics – audio quality! To that effect MTH800 has two major improvements; a new larger and more effective 1 Watt speaker as well as a new 1 Watt class D audio amplifier, all together providing exceptional clarity of audio with minimal distortion, even at high audio levels (user customisable sound level).


Colour Display
Display technologies are moving fast. Motorola now has a 65,000 colour display included in the MTH800 for ease of use to differentiate display information to the user. The 130 x 130 pixel display provides the ability to view high resolution pictures e.g. missing persons, suspects etc.


User Interface
To harness the power of MTH800 a new easy-to-use graphical user interface is included with assignable shortcuts to menu items, more that 3,000 Talk Groups as well as a unified contact book with 2,000 entries – enough to satisfy even the demanding user.


DMO Services


Group call
Late entry
Private call
Half / full duplex
Compatibility with
Gateway and repeater


Data Services


Battery life - extended (based on a 5/35/60 duty cycle)
> 8 (800 mAh), > 16 (1500 mAh)
Status messaging
100 alias messages
Short data service (SDS)
20 message inbox, individual or group addresses, send/receive during calls
Packet data (PD)
7.2kbps - 28.8 kbps gross (single or mutli-slot)
Integrated Openwave browser
AT commands


Emergency Voice Services


Smart emergency
Hot mic
Configurable timers
Send on emergency
Emergency target address
Individual or group
Emergency status


GPS Specifications


Simultaneous satellites
Mode of operation
Autonomous or assisted (A-GPS)
GPS antenna
Integrated in TETRA antenna
GPS sensitivity
-152 dBm / -182 dBw
GPS accuracy
5 meter (50% probable), 10 meter (95% probable)
Location protocols


Performance Characteristics


Battery capacity
800 mAh (standard), 1500 mAh (hi-capacity)
Battery life - standard (based on a 05/05/90 duty cycle)
> 12 (800 mAh), >20 (1500 mAh)
Frequency bands
450-470 MHz
Channel spacing
RF power control
3 steps of 5 dB


Physical Characteristics


Dimensions H x W x D (with standard battery)
141 x 55 x 33 mm
192 g (radio only), 247 g (with hi-capactiy battery and antenna)


Radio Features


Switching bandwidth
50 (380-430), 20 (450-470) MHz
RF power level accuracy
+/- db 2
Receiver class
A & B
Receiver static sensitivity
-112 minimum, -115 typical
Receiver dynamic sensitivity
-103 minimum, -107 typical
Scan types
Talk group


Security Features


Air interface encryption algorithms
Air interface encryption security classes
Class1 (clear), Class2 (SCK), Class3 (DCK, CCK & GCK)
Key provisioning
"Secure provisioning tool (key variable loader KVL)Over the Air Re-keying (OTAR) for SCK and Class 3 (CCK & GCK)"
Network access
Temporary enable / disable (Stun), Permanent enable / disable (Kill)
Infrastructure initiated and made mutual by terminal


TMO Services


Full duplex
Up to 2047 groups


User Environment


Operating temperature
-20°C to +60°C
Storage temperature
-40°C to +85°C
ETS 300 019-1-5 Class 5.1 and 5.2
Dust and water1
IP64 (Cat 2)
Shock, drop and vibration
ETS 300 019-1-5 Class 5M2
IP Standards
