Motorola Products > Project P25 Terminals & Infrastructure > ASTRO® 25 M Core: Single and Multi-Zone System

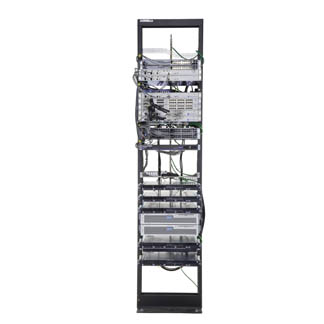

Available in a single zone standard and single zone or multi-zone fully redundant configuration, powerful servers combine with Motorola’s proven software to provide an adaptable and affordable platform for mission critical standards-based Project 25 (P25) communication systems. The scalable and virtualized ASTRO 25 M Core is the most flexible P25 Core that can manage conventional, trunked, integrated data, Enhanced Data, SmartX sites and HPD in one configuration.


Optimize the channel resources at ASTRO® 25 RF Sites using the GCP 8000 Site Controller. The dual design of GCP 8000 controller provides automatic failover to deliver uninterrupted system operation for mission critical radio service. The software upgradeable GCP 8000 Site Controller can be easily configured to increase capacity when installing new base radio hardware.

Features and Benefits

Mission Critical Data for Trunking and Conventional Systems – Integrated Data, Enhanced Data and/or HPD

Single zone: 300 channels per zone,1-24 sites
Multi-zone: 1,000 channels per zone, 150 sites Frequency bands 700MHz, 800MHz, 900MHz, UHF (380-520MHz), VHF (136-174MHz)

Topologies supported
Repeater, simulcast, multicast, voting, analog 4-wire, mixed mode, v.24, IP digital conventional and trunking, SmartX, P25 Conventional Talkgroup Channel

Dispatch systems supported
CENTRACOM™ Gold Elite, MCC 7500 IP Dispatch Console, MCC 7100 IP Dispatch Console Stations supported G-series, QUANTAR™, MTR series, other analog 4 wire conventional stations

System Redundancy
For increased system resiliency, we offer a fully redundant M Core configuration to compliment the highly available ASTRO 25 system architecture.
