Motorola Products > TETRA Terminals & Infrastructure > MTP810ex ATEX Portable Terminal

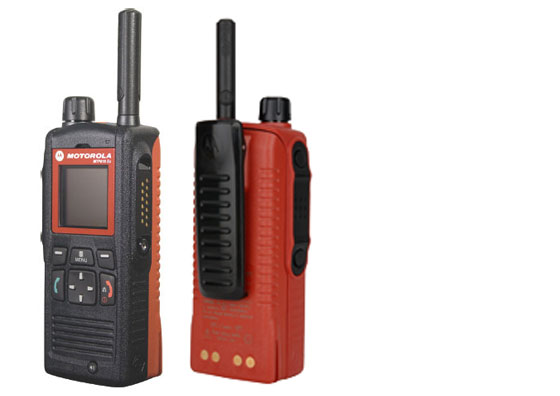

Motorola’s MTP810Ex TETRA portable terminal provides high quality communication with comprehensive user safety and class leading ATEX specifications allowing use when in environments containing potentially explosive gas and dust. Motorola is a world leader in the development and deployment of TETRA communication solutions, and the MTP810Ex ATEX TETRA radio delivers safe and reliable communications for users with a powerful set of features to harness the capability of TETRA.



Features and Benefits

Compatibility with
Gateway and repeater




Data Services



Status messaging
100 alias messages
Short data service (SDS)
20 message inbox, individual or group addresses, send/receive during calls
Packet data (PD)
7.2kbps - 28.8 kbps gross (single or mutli-slot)
Browser
Integrated Openwave browser
PEI
AT commands




Emergency Voice Services





Smart emergency
DMO / TMO / DMO to TMO
Hot mic
Configurable timers
Location
Send on emergency
Alarm
Emergency status



GPS Specifications



Simultaneous satellites
12
Mode of operation
Autonomous or assisted (A-GPS)
GPS antenna
Integrated in TETRA antenna
GPS sensitivity
-152 dBm / -182 dBw
GPS accuracy
5 meter (50% probable)
Location protocols
ETSI LIP, Motorola LRRP



Performance Characteristics



Battery capacity
725 mAh, 7.2V
Battery life - standard (based on a 05/05/90 duty cycle)
12 hrs, typ
Frequency bands
380 – 430 MHz
Channel spacing
25
Power
1W
RF power control
3 steps of 5 dB
OTAR
Yes




Physical Characteristics



Dimensions H x W x D (with standard battery)
135 x 55 x 38 mm
Weight
400 g (including battery, antenna)



Radio Features



Switching bandwidth
50 MHz
RF power level accuracy
+/- db 2
Receiver class
A & B
Receiver static sensitivity
-112 minimum, -115 typical
Receiver dynamic sensitivity
-103 minimum, -107 typical
Scan types
Talk group



Security Features



Air interface encryption algorithms
TEA1, TEA2, TEA3
Air interface encryption security classes
Class1 (clear), Class2 (SCK), Class3 (DCK, CCK & GCK)
Key provisioning
"Secure provisioning tool (key variable loader KVL)Over the Air Re-keying (OTAR) for SCK and Class 3 (CCK & GCK)"
Network access
Temporary enable / disable (Stun), Permanent enable / disable (Kill)
Authentication
Infrastructure initiated and made mutual by terminal




TMO Services



Group call
Late entry
Private call
Half / full duplex
Telephony
Full duplex
DGNA
Up to 2047 groups



User Environment



ATEX gas specifications
II 2G Ex ib IIA T3, IEC Ex rating, Ex ib IIC T4
ATEX dust specifications
II 3D Ex ibD 21 IP5x T90oC, Ex ibD 22 IP5x ib D21 T90oC (Approved for Zone 22, Equipment Group II)
Operating temperature
"-20°C to +50°C (Hazardous environments)-20°C to +60°C (Non-hazardous environments)"
Storage temperature
-40°C to +85°C
Humidity
ETS 300 019-1-5 Class 5.1 and 5.2
Dust and water1
IP65 per IEC 60529
Shock, drop and vibration
ETS 300 019-1-5 Class 5M2
IP Standards
IP65
