The MTM5200 is the base model in the new family of TETRA radios. It shares the enhanced audio and receiver sensitivity of the current MTM5400, as well as being TEDS-ready for high speed data service which will enhance operation

With best-in-class receiver sensitivity the MTM5200 delivers industry leading operational range. With its flexible implementation options and advanced voice and data capabilities, the versatile MTM5200 supports a wide range of applications, including fixed control room, vehicle, motorcycle and custom installations.

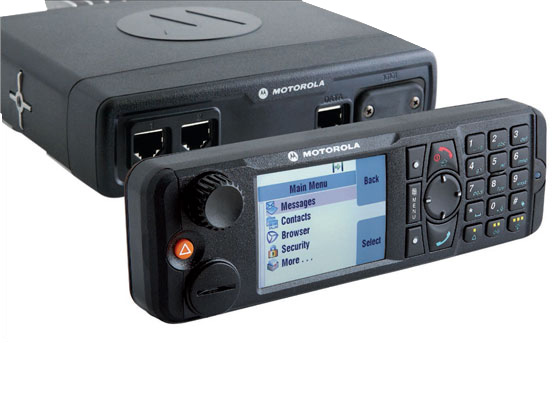

This control head sets the standard for new levels of durability, performance and usability. Developed for organisations where rugged and versatile mobile radios are essential, it builds on the key components of Motorola’s field-proven and trusted TETRA platform, placing information at the finger.



Features and Benefits



Extended Operational Range

• With class leading receiver sensitivity the MTM5200 delivers comprehensive network coverage.



Superior Audio Performance

• Next generation audio architecture delivering the loudest and clearest audio performance of any Motorola TETRA mobile available on the market*



High Speed Data Connectivity

• TEDS Ready hardware - with a simple software license upgrade, enables 20x faster data connectivity for accessing back-office systems and databases.• Integrated USB 2.0 PEI, enabling rapid radio programming and standardised interfacing to data terminals and accessories. For additional flexibility, USB host and slave modes are also supported.



Low User Migration Costs

• Familiar cellular style user interface and VGA colour display for enhanced usability and reduced staff training costs• Same user interface as market proven MTP850 portable and MTM800 Enhanced mobile radios Common GCAI accessory interface used across the MTM800 Series and MTM5000” Series allowing reuse of accessories



Enhanced End to End Encryption Options

• Integrated hardware for SIM based end to end encryption coupled with the Universal Crypto Module option



Advanced Terminal Management

• USB 2.0 interface for fast radio programming via Motorola’s integrated Terminal Management solution



Rugged Design with Exceptional Reliability

• Includes IP67 control head option ( MTM5200/5400), for exposed and challenging environments• Front and Rear rugged GCAI connector for reliable connection of audio and data peripheral equipment



Compatibility
Gateway & Repeater (DMO)
Group call
Late entry



Data Services



Browser
TEDS Ready – Software license upgrade enables 20x faster data connectivity.
Status messaging
100 Alias messages
Packet data (PD)
7.2kbps - 28.8 kbps gross; Single or Multi Slot
PEI
AT Commands; TNP1; enables simultaneous SDS & PD
Short data service (SDS)
20 messages inbox; Individual or group target address; Send/receive during calls




Emergency Voice Services





Alarm
Emergency Status
Hot mic
Configurable timers
Smart emergency
DMO / TMO / DMO to TMO
Emergency target address
Individual or Group
Location
Send on emergency




GPS Specifications



Time to First Fix (TTFF)
Autonomous – Hot <1S, Warm <36s, Hot <36s
GPS antenna
Integrated in TETRA antenna
Location protocols
ETSI LIP, Motorola LRRP
Simultaneous satellites
12
GPS accuracy
5 meter (50% probable)<10 meter (95% probable)
GPS sensitivity
-152 dBm / -182 dBw
Mode of operation
Autonomous or assisted (A-GPS)




Performance Characteristics



Encryption
Yes




Physical Characteristics



Display
2.8” VGA 640x480 TFT 65K colors
Emergency button
Yes
Configurations
Dash Mount, Remote Mount, Motorcycle
Dimensions H x W x D
60x188x198mm (Dash/Desk), 61x190x40mm (Remote CH) 47x165x160mm (Remote Transceiver-Std / IP67 M/C Transceiver), 47x165x170mm (Remote Transceiver-Data / IP67 M/C Transceiver /Data Box), 60x188x39mm (IP67 M/C CH)
Weight
1300g (Dash/Desk), 1450g (Remote-Std.), 1530g (Remote-Data), 1470g (IP67 M/C-Std.), 1550g (IP67 M/C-Data), 1230g (Data)
Keypad
Yes



Radio Features



Status calls
Yes
Scan
Priority, Talk group
GPS capable
Yes
Call tones
True
Text messaging capable
Yes
Caller ID
Yes
Selective radio inhibit
Yes
Programmable buttons
Yes
Emergency signalling
Yes




Security Features



End to End Encryption (E2EE)
Hardware Model available with AES128 or AES256 Algorithms MACE (Motorola Adv. Crypto Engine) Chipset.SIM Based E2EE Solution (German BSI MTM800FuG Models Only)
Network access
Temporary enable / disable (Stun), Permanent enable / disable (Kill)
Key provisioning
Secure provisioning tool (key variable loader KVL)
Air interface encryption security classes
Class1 (clear), Class2 SCK), Class3 (DCK, CCK & GCK)
Authentication
Infrastructure initiated and made mutual by terminal
Air interface encryption algorithms
TEA1, TEA2, TEA3

TMO



Private call
Half / Full Duplex (TMO)
Telephony
Full Duplex (TMO)
DGNA
up to 2047 groups (TMO)


User

Humidity
ETS 300 019-1-5 Class 5.1 and 5.2; EIA / TIA 603 (95%)
Storage temperature
-40 to +85 (°C)
Dust and water
Dash / Desk / Remote IP54 (Cat 2); Motorcycle Control Head IP67 (Cat 2)
Operating temperature
-30 to +60 (°C)
