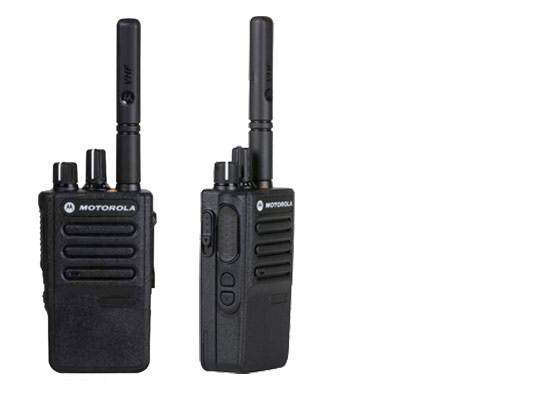

With this dynamic evolution of MOTOTRBOTM digital two-way radios, you're more agile, better connected and safer. The DP3441e is designed for the mobile professional who needs effective communications. With a compact design and high-performance integrated voice and data, these next-generation radios deliver comprehensive connectivity to your organisation.

Check out the new features of these next-generation radios:

  • Integrated accelerometer for optional Man Down
  • Bluetooth® 4.0
  • Indoor location tracking
  • Multi-constellation GNSS for increased location accuracy
  • Integrated Wi-Fi®
  • Over-the-air software updates
  • Enhanced audio quality
  • Improved expandability
  • Better range (up to 8%)
  • Better waterproofing (IP68)

Compatibility: Capacity MAX, IP Site Connect, Capacity Plus, Linked Capacity Plus and Connect Plus.

Agile The DP3441e is a tough and compact ETSI DMR Standards compliant digital radio. Its small form factor makes it conveniently portable, with an efficient short antenna that won’t get in your way. It’s tested to military standards for extreme ruggedness and is rated IP68 for almost complete immunity to dust and water. It won’t let you down even in harsh environments. Safe Safeguard your staff with responsive push-to-talk technology. The prominent orange emergency button on the DP3441e summons help with one touch, using Transmit Interrupt to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen and can automatically call for assistance.

Connected The DP3441e delivers operation-critical voice and data. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.

Performance Characteristics

  • Frequency range

    VHF: 136-174 MHz
    UHF: 403-527 MHz

  • Power output

    UHF: 1W/4W
    VHF: 1W/5W

  • Battery life (based on a 05 05 90 duty cycle)

    Up to 16 hrs (digital) / 12 hrs (analogue)

  • Repeater capable

    Yes

Physical Characteristics

  • Dimensions H x W x D (with standard battery)

    100 x 56 x 30 mm (3.8 x 2.2 x 1.2 in)

  • Weight (With 1400mAh LiIon battery)

    254 g (9 oz)

  • Emergency button

    Yes

Radio Features

  • Number of channels

    32

  • Channel spacing

    12.5, 20, 25

Technology

  • Digital technology

    Yes

  • System type

    Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Trunking

User Environment

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

Warranty

  • Standard warranty

    2 years
